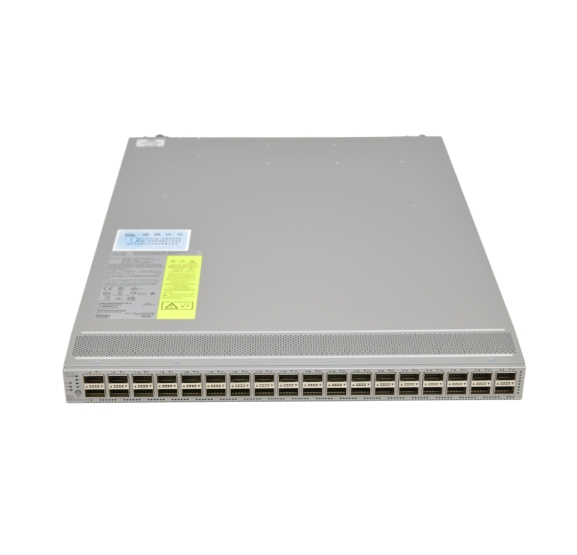

N9K-C9336C-FX Cisco Nexus 9336C-FX2 Nexus 9K Fixed With 36p 40G/100G QSFP28

Brand Name : Cisco

Model Number : N9K-C9336C-FX2

Certification : CE

Place of Origin : USA

Model : N9K-C9336C-FX2

Ports : 36 x 40/100-Gbps QSFP28 ports

Downlink supported speeds : 1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel

System memory : 24 GB

SSD drive : 128 GB

Physical dimensions : 1.72 x 17.3 x 22.5 in.

Condition : Brand New Sealed

Warranty : 1 year

Payment : T/T, Western Union, Paypal

Shipment : DHL, Fedex, UPS

Contact Now

N9K-C9336C-FX2 Overview

Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

N9K-C9336C-FX Cisco Nexus 9336C-FX2 Nexus 9K Fixed With 36p 40G/100G QSFP28N9K-C9336C-FX Cisco Nexus 9336C-FX2 Nexus 9K Fixed With 36p 40G/100G QSFP28

Compare to Similar Items

Models N9K-C9336C-FX2 N9K-C9336C-FX2-E N9K-C93240YC-FX2 N9K-C93360YC-FX2 N9K-C93216TC-FX2=
Ports 36 x 40/100-Gbps QSFP28 ports 36 x 40/100-Gbps QSFP28 ports 48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports 96 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gbps QSFP28 ports
Supported speeds

1/10/25/40/100-Gbps Ethernet

Breakout supported on all ports, 1-36:

100G, 2x50G NRZ,

40G native, 4x10/25G (10G w/QSA)

1G w/QSA except ports 1-6 and 33-36

1/10/25/40/100-Gbps Ethernet

Breakout supported on all ports, 1-36:

100G, 2x50G NRZ,

40G native, 4x10/25G (10G w/QSA)

1G w/QSA except ports 1-6 and 33-36

16/32-Gbps Fibre Channel

1/10/25-Gbps on downlinks

40/100-Gbps on uplinks

1/10/25-Gbps on downlinks

40/100-Gbps on uplinks

Breakout supported ports, 97-108: 4x10/25G

100M/1/10 Gbps RJ45 downlinks

40/100-Gbps on uplinks

Breakout supported ports, 97-108: 4x10/25G
CPU 4 cores 4 cores 4 cores 4 cores 4 cores
System memory 24 GB 24 GB Up to 24 GB Up to 24 GB Up to 24 GB
SSD drive 128 GB 128 GB 128 GB 128 GB 128 GB
System buffer 40 MB 40 MB 40 MB 40 MB 40 MB
Power supplies
(up to 2)		 750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC 750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC** 750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC 1200W AC, 1200W HVAC/HVDC 1200W AC, 1200W HVAC/HVDC
Typical power (AC) 337W 337W 298W 404W 580W
Maximum power (AC) 719W 705W 708W 900W 965W
Fans 3 dual fan trays 6 5 3 fan trays 3 fan trays
Physical dimensions
(H x W x D)		 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) 1.72 x 17.3 x 24.7 in. (4.4 x 43.9 x 62.7 cm) 2.1 x 17.3 x 23.3 in. (5.3 x 43.9 x 59.1 cm) 3.38 x 17.41 x 24.14in. (8.59 x 44.23 x 61.31 cm) 3.38 x 17.41 x 23.6 in (8.59 x 44.2 x 59.9 cm)

N9K-C9336C-FX2 Specification

N9K-C9336C-FX2 Specification
Item Cisco Nexus 9300-FX2 Series Switches
Feature Cisco Nexus 9336C-FX2
Ports 36 x 40/100-Gbps QSFP28 ports
Supported speeds

1/10/25/40/100-Gbps Ethernet

Breakout supported on all ports, 1-36:

100G, 2x50G NRZ,

40G native, 4x10/25G (10G w/QSA)

1G w/QSA except ports 1-6 and 33-36
CPU 4 cores
System memory 24 GB
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP+
USB ports 1
RS-232 serial ports 1
Power supplies
(up to 2)		 750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC
Typical power (AC) 337W
Maximum power (AC) 719W
Input voltage (AC) 100 to 240V
Input voltage (High-Voltage AC [HVAC]) 100 to 277V
Input voltage (DC) –40 to –72V
Input voltage (High-Voltage DC [HVDC]) –240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 3 dual fan trays
Airflow Port-side intake and exhaust
Physical dimensions
(H x W x D)		 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm)
MTBF 352,590 hours
Maximum number of Longest Prefix Match (LPM) routes** 896,000
Maximum number of IP host entries** 896,000
Maximum number of MAC address entries** 256,000
Maximum number of multicast routes 128,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups

Shipping: 8,000

Maximum: 32,000
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch 16
Maximum number of Access Control List (ACL) entries

Per slice of the forwarding engine:

5000 ingress

2000 egress
Maximum number of VLANs 4096
Number of Virtual Routing and Forwarding (VRF) instances

Shipping: 1,000

Maximum: 16,000
Maximum number of ECMP paths 64
Maximum number of port channels 512
Maximum number of links in a port channel 32
Number of active SPAN sessions 4
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances 3,967
Maximum number of Hot-Standby Router Protocol (HSRP) groups 490
Number of Network Address Translation (NAT) entries 1,023
Maximum number of Multiple Spanning Tree (MST) instances 64
Flow-table size used for Cisco Tetration Analytics platform 64,000
Number of Queues 8
