CISCO N9K-C92300YC Nexus 9200 With 48p 10/25g Sfp+ And 18p 100g Qsfp28

Product Categories
LonRise Equipment Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

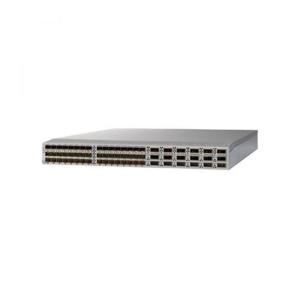

CISCO N9K-C92300YC Nexus 9200 With 48p 10/25g Sfp+ And 18p 100g Qsfp28

Brand Name : Cisco

Model Number : N9K-C92300YC

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 50 units / months

Delivery Time : 2-3 days

Packaging Details : In original carton package

Part Number : N9K-C92300YC

Ports : 48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports

Supported speeds : 1, 10, and 25 Gbps on SFP+ ports 40, 100 Gbps on QSFP ports

Port configuration : 48 x 10/25-Gbps ports for downlinks; 100-Gbps for the uplinks

Physical dimensions (H x W x D) : 2.00 x 17.2 x 22.3 in. (5.08 x 43.8 x 56.6 cm)

System memory : 16 GB

Solid-State Disk (SSD) drive : 128 GB

Contact Now

N9K-C92300YC is the Nexus 9200 with 48p 10/25 Gbps and 18p 100G QSFP28. Built on the latest Cisco Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

N9K-C92300YC Specification
Ports 48 x 10- and 25-Gbps SFP+ and 18 100-Gbps ports
Supported speeds

1, 10, and 25 Gbps on SFP+ ports

40, 100 Gbps on QSFP ports
Port configuration 48 x 10/25-Gbps ports for downlinks; 100-Gbps for the uplinks
Telemetry support –
CPU 2 cores
System memory 16 GB
Solid-State Disk (SSD) drive 128 GB
Shared system buffer 30 MB
Management ports 2 ports: 1 RJ-45 and 1SFP
USB ports 1
RS-232 serial ports 1
Power supplies (PSU - up to 2) 650W AC 1200W HVDC (Roadmap)
Typical power (AC)

10G: 216W

25G: 260W
Maximum power (AC) 603W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)
Input voltage (HVDC) 240 to 380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
MTBF (hours) 365,610
Physical (H x W x D) 2.00 x 17.2 x 22.3 in. (5.08 x 43.8 x 56.6 cm)
Acoustics 52.1 dBA at 40% fan speed, 62.0 dBA at 70% fan speed, and 71.5 dB at 100% fan speed
RoHS compliance Yes
Weight 18.6 lb (8.4 kg) (without power supplies or fans)
