S6720-30C-EI-24S-AC Huawei Network Switches 24x10 Gig SFP+ 2x40 Gig QSFP+ Ports

Product Categories
LonRise Equipment Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

S6720-30C-EI-24S-AC Huawei Network Switches 24x10 Gig SFP+ 2x40 Gig QSFP+ Ports

  • 1
  • 2

Brand Name : Huawei

Model Number : S6720-30C-EI-24S-AC

Certification : CE

Place of Origin : CHINA

MOQ : 1UNIT

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 40 Units/Month

Delivery Time : 2-3days

Packaging Details : NEW IN BOX

Product Type : Huawei Network Switch

Model : S6720-30C-EI-24S-AC

Ports : 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

Power Supply : 600W AC power supply

Switching Capacity : 2.56 Tbit/s

WLAN : New with 1 Year

Contact Now

S6720-30C-EI-24S-AC Huawei Network Switches 24x10 Gig SFP+,2x40 Gig QSFP+ Ports

Huawei S6720-EI Series Switches Brochure (1).pdf

Overview

Huawei S6720-30C-EI-24S-AC switch is one of the Huawei S6720 series Switches. The S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

Product Details

Product Code S6720-30C-EI-24S-AC
Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Interface Slot 1
Power Supply AC Power Supply
Forwarding Performance 720 Mpps
Switching Capacity 2.56 Tbit/s
Stack Supported
Stack Ports

- Any 10GE SFP+ ports (a maximum of 16 physical ports)

- Any 40GE QSFP+ ports (a maximum of 6 physical ports)
Memory (RAM) 2 GB
Flash 240 MB
Dimensions (W x D x H) 44.2 cm x 42 cm x 4.44 cm
Weight (Kg) 9.8 Kg

shows the front panel of Huawei S6720-30C-EI-24S-AC switch.

S6720-30C-EI-24S-AC Huawei Network Switches 24x10 Gig SFP+ 2x40 Gig QSFP+ Ports

Note:

① 24 × 10GE SFP+ ports ④ One USB port
② 2 × 40GE QSFP+ ports ⑤ One console port
③ ETH management port

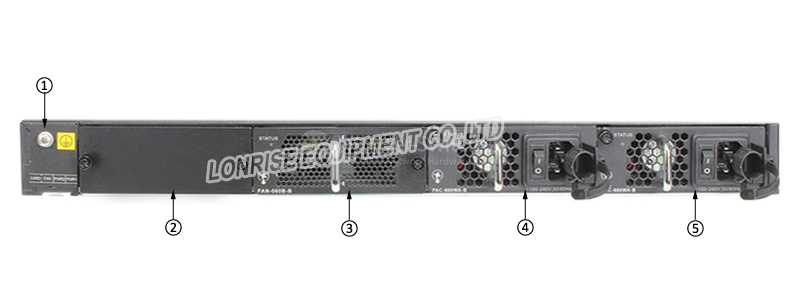

shows the back panel of Huawei S6720-30C-EI-24S-AC switch with installed fan modules and power modules. These modules should be purchased separately.

S6720-30C-EI-24S-AC Huawei Network Switches 24x10 Gig SFP+ 2x40 Gig QSFP+ Ports

Note:

① Ground screw ④ Power module slot 2
② Rear card slot ⑤ Power module slot 1
③ Fan slot

The Accessories

shows the recommended transceivers, card and power module.

Model Description
GE-SFP Optical Transceiver
SFP-1000BaseT Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)
10GE SFP+ optical transceiver
SFP-10G-USR 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000 Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
OSX010000 Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
40GE optical transceiver
QSFP-40G-ER4 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
QSFP-40G-LR4 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)
Card
ES5D21Q04Q01 Huawei 4 × 40 Gig QSFP+ interface card(used in S6720EI series)
Power Module
PAC-600WA-B 600W AC Power Module(Back to Front,Power panel side exhaust)

Compare to Similar Items

shows the comparison of Huawei S6720-30C-EI-24S-AC, S6720-54C-EI-48S-AC and S6720S-26Q-EI-24S-AC.

Models S6720-30C-EI-24S-AC S6720-54C-EI-48S-AC S6720S-26Q-EI-24S-AC
Switching Capacity 2.56 Tbit/s 2.56 Tbit/s 2.56 Tbit/s
Forwarding Performance 720 Mpps 1,080 Mpps 480 Mpps
Fixed Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports 48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot One extended slot for 4 x 40 GE QSFP+ interface card One extended slot for 4 x 40 GE QSFP+ interface card Not supported
Power Supply AC Power Supply AC Power Supply AC Power Supply
