Huawei Router AR2504E-H IoT Gateway 8GE LAN 1USB 1 X DO 2*WSIC 60W AC / DC

Name: Huawei Router AR2504EH IoT Gateway 8GE LAN 1USB 1 X DO 2WSIC 60W AC DC
Brand: HUAWEI
Price: 1 USD

Wholesale Huawei Router AR2504E-H IoT Gateway 8*GE LAN 1*USB 1 X DO 2*WSIC 60W AC / DC from china suppliers

Brand Name : HUAWEI

Model Number : AR2504E-H

Certification : CE

Place of Origin : China

MOQ : 1 UNIT

Price : Negotiatable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100 PCS/MONTH

Delivery Time : 1-2 DAYS

Packaging Details : NEW IN BOX

Brand : HUAWEI

PN : AR2504E-H

Fixed ports : 4 x GE combo, 4 x GE RJ45

Alarm Interface : 1 DO

level of protection : IP30

Condition : New with 1Year Warranty

Contact Now

Huawei Router AR2504E-H IoT gateway 8*GE LAN , 1*USB, 2*WSIC, 60W, AC / DC

AR2504E-H Overview

AR1500 series IOT can be applied to industrial automation such as power and transportation.

The AR1500 series is integrated with up to 28 high density ports, which is convenient for multi terminal access, and the industrial design can satisfy the network communication needs in the environment of bad temperature, humidity and electromagnetic interference.

AR2504E-H Specification

Huawei Router AR2504E-H IoT Gateway 8*GE LAN 1*USB 1 X DO 2*WSIC 60W AC / DC

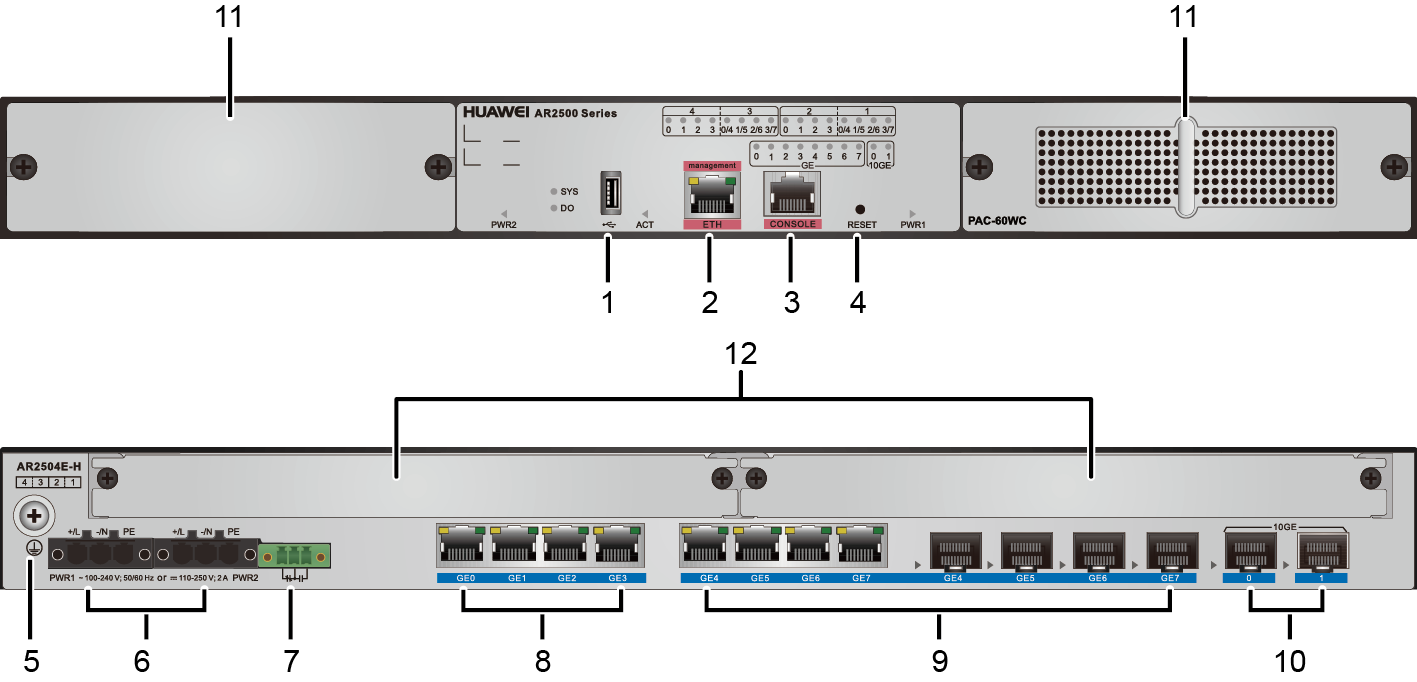

1	USB interface	2	ETH interface NOTE: ETH is a management interface and is used to upgrade the router.
3	Console interface	4	RESET button
5	Ground point NOTE: The router must be reliably grounded using a ground cable to protect the router from lightning and electromagnetic interference.	6	Two power sockets
7	Reserved DO interface	8	Four GE electrical interfaces
9	Four GE combo interfaces	10	LAN interface: Two 10GE optical interfaces
11	Two power module slots Applicable power module: 60 W AC power module	12	Two WSIC slots

Product specifications	AR2504-H	AR2504E-H	AR2504-d-H
Fixed interface	4 X Gigabit Combo , 4 X GE RJ45	2 X 10 GIVE, 4 X Gigabit Combo , and 4 X GE RJ45	4 X Gigabit Combo , 4X GE RJ45
Alarm interface	1 X DO (3- pin industrial terminal )
Forwarding performance	36 MPPS	66 MPPS	36 MPPS
Exchange capacity	144 Gbit / s
Certification	North America : UL Germany : GS Worldwide : CB European Union : EC (2004/108/EC, EN 55022, EN55024, and EN 300386) United States : FCC (47 CFR Part 15) Canada : I Know ( ICES- 003) Australia : RCM ( formerly C-TICK : AS / NZS CIPSR22 ) Power : IEC61850-3 / IEEE1613 ( for substations ) National Grid : Class A
Ring network protocol	SEP, PTS, RSTP, and MSTP
power	Redundant power supply module AC: 100 V to 240 V , 50 Hz / 60 Hz (90 V to 264 V , 47 Hz 63 Hz) DC: 110 V to 250 V (88 V to 300 V ) Input undervoltage and overvoltage protection Output short circuit protection overheating Protection reverse connection protection		Redundant power supply module DC: 24 V to 48V (18 V to 60V ) input undervoltage and overvoltage protection output short circuit protection overheat protection reverse connection protection
IP protection level	IP30
Operating temperature	-40 ° C to 65 ° C in accordance with IEC60068-2-1-2007 and ETSI EN 300 019-2-3 V2.2.2 :2003, the router can operate reliably 24 hours in the temperature range of -40 ° C, 70 ° C		-40 ° C to 60 ° C
Dimensions (height x width x d)	44 mm × 442 mm × 420 mm ( installation ear removal )
