PVDM3-16 Cisco Router Mdules 16-channel high-density voice DSP module

Name: PVDM316 Cisco Router Mdules 16channel highdensity voice DSP module
Brand: Cisco
Price: 1 USD

Wholesale PVDM3-16 Cisco Router Mdules 16-channel high-density voice DSP module from china suppliers

Brand Name : Cisco

Model Number : PVDM3-16

Certification : CE

Place of Origin : China

MOQ : 1

Price : negonation

Payment Terms : Western Union, L/C, T/T, Paypal

Supply Ability : 1000

Delivery Time : 2-3days

Packaging Details : common package

Branch : Cisco

PN : PVDM3-16

Type : router modules

port structure : the modularity

Transmission rate : DSP module For cisco router

Condition : New with 1 year warranty

Contact Now

PVDM3-16 Cisco Router Mdules 16-channel high-density voice DSP module

Cisco PVDM3-16 Specification:

The Cisco High-Density Packet Voice Digital Signal Processor Module (PVDM3) enables Cisco 2900 and 3900 Series Integrated Services Routers Generation 2 to provide rich-media capabilities such as high-density voice video connectivity, conferencing, transcoding, transrating, and secure voice in Cisco Unified Communications Solutions.

Part code: PVDM3-16

PRODUCT DETAILS
Device Type	Voice DSP module
Form Factor	Plug-in module
RAM	512 MB
Designed For	Cisco 2901, 2911, 2921, 2951, 3925, 3925E, 3945, 3945E

product details:

PRODUCT DETAILS
Device Type	Router - voice / fax module
Enclosure Type	Rack-mountable - modular - 2U
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified SRST sessions : 250 Cisco Unified Communications Manager Express sessions : 150
Network / Transport Protocol	IPSec, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol	SNMP, RMON, TR-069
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
Power	AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)	43.82 cm x 46.99 cm x 8.89 cm
Weight	13.2 kg
Manufacturer Warranty	1 year warranty

Compare to Similar Items

shows the comparison of PVDM3-16, PVDM3-32, PVDM3-64, PVDM3-128, PVDM3-192 and PVDM3-256.

Product Code	PVDM3-16	PVDM3-32	PVDM3-64	PVDM3-128	PVDM3-192	PVDM3-256
Description	16-channel high-density voice DSP module	32-channel high-density voice DSP module	64-channel high-density voice DSP module	128-channel high-density voice DSP module	192-channel high-density voice DSP module	256-channel high-density voice DSP module
Maximum Number of Channels in Low-Complexity Codecs	16	32	64	128	192	256
Maximum Number of Channels in Medium-Complexity Codecs	12	21	42	96	138	192
Maximum Number of Channels in High-Complexity Codecs	10	14	28	60	88	120

Products Reference:

PN	Description	GPL
PVDM2-16	16-Channel Packet Voice/Fax DSP Module	$800
PVDM2-48	48-Channel Packet Voice/Fax DSP Module	$2400
PVDM3-32	32-channel high-density voice DSP module	$1600
PVDM3-128	128-channel high-density voice DSP module	$6400
PVDM3-256	256-channel high-density voice DSP module	$9900

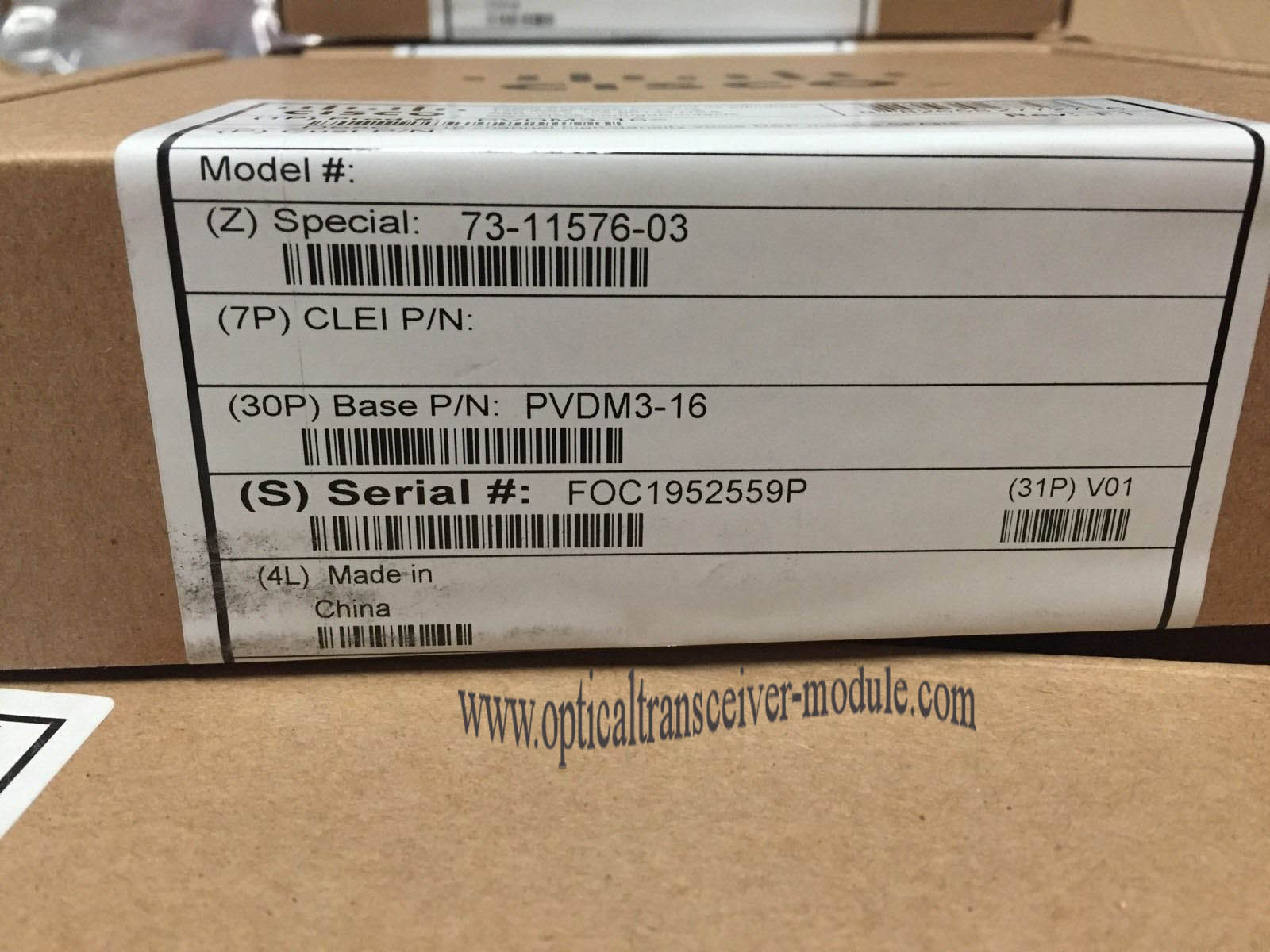

Pictures for reference:

PVDM3-16 Cisco Router Mdules 16-channel high-density voice DSP module
